Cranked HGV Wheel Guides


(From £959.40 incl VAT)

Select a product variation to get estimate
Cranked HGV Wheel Guides


Select a product variation to get estimate

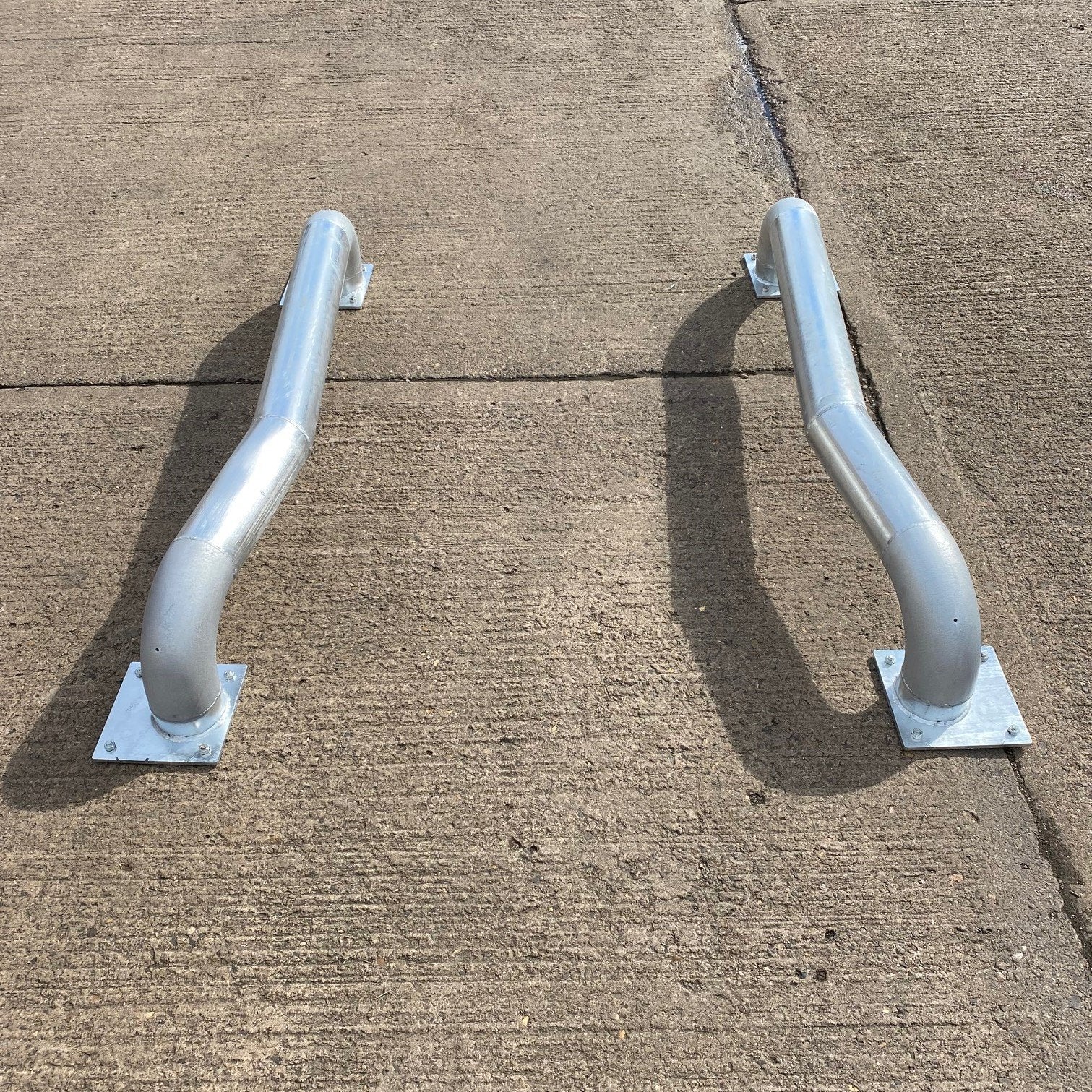

Cranked HGV Wheel Guides | Galvanised or Galvanised & Yellow

Our Cranked HGV wheel guides provide a solid, steel kerb to allow the safe reversing into loading bays by wagons and delivery trucks. Also suitable for protecting racking, equipment and machines from potential damage caused by forklift trucks and moving vehicles.
Available in 1800mm length, & 76mm, 90mm, 139mm or 168mm diameter. Ourcranked wheel guide is suitable for a wide range of warehouse or factory environments.

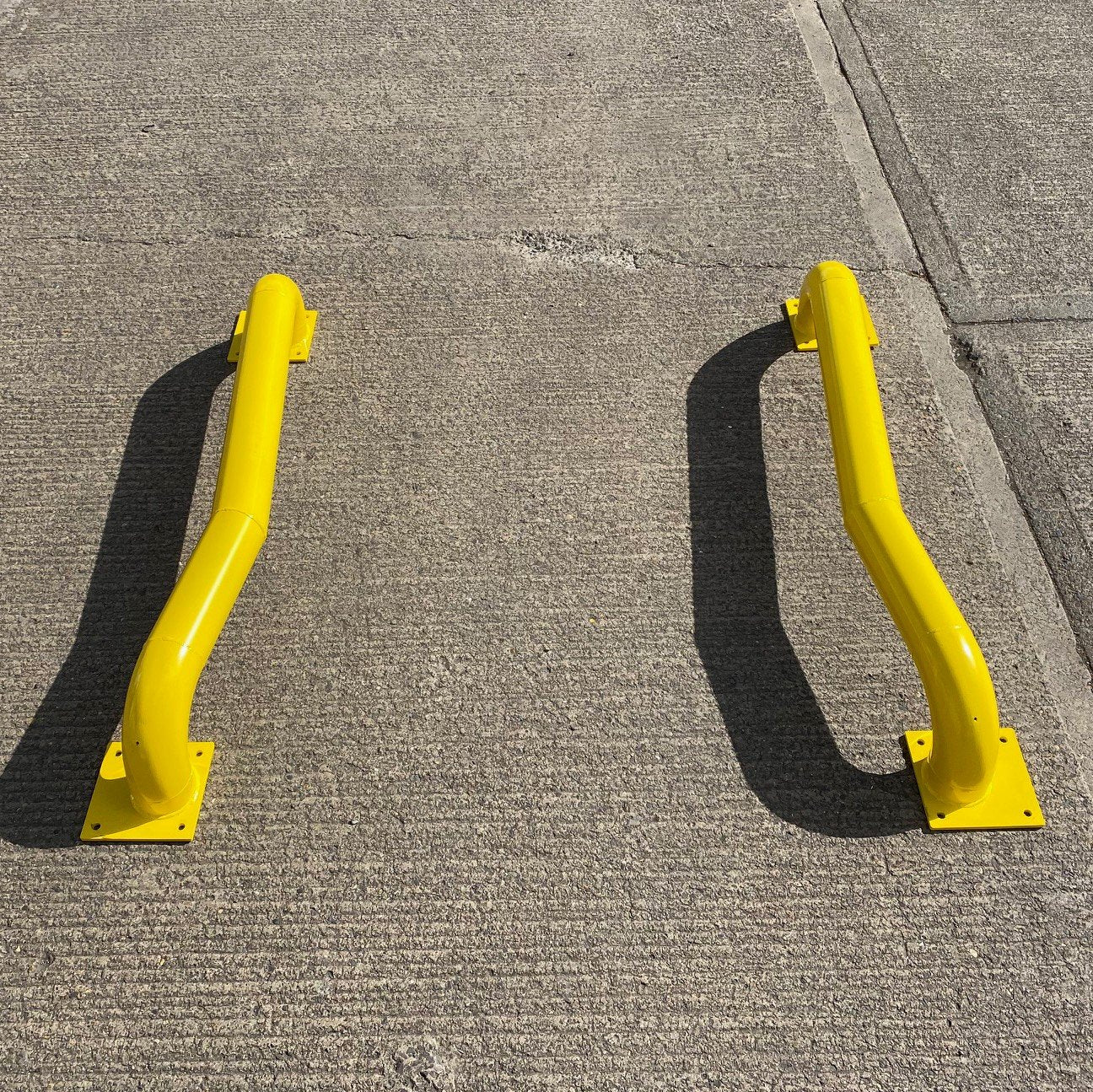

Manufactured from galvanised mild steel, then powder coated yellow providing a visual and physical aid for drivers.
Sold in pairs. Each pair will include 1 x left hand crank and 1 x right hand crank.
Available bolt down only.

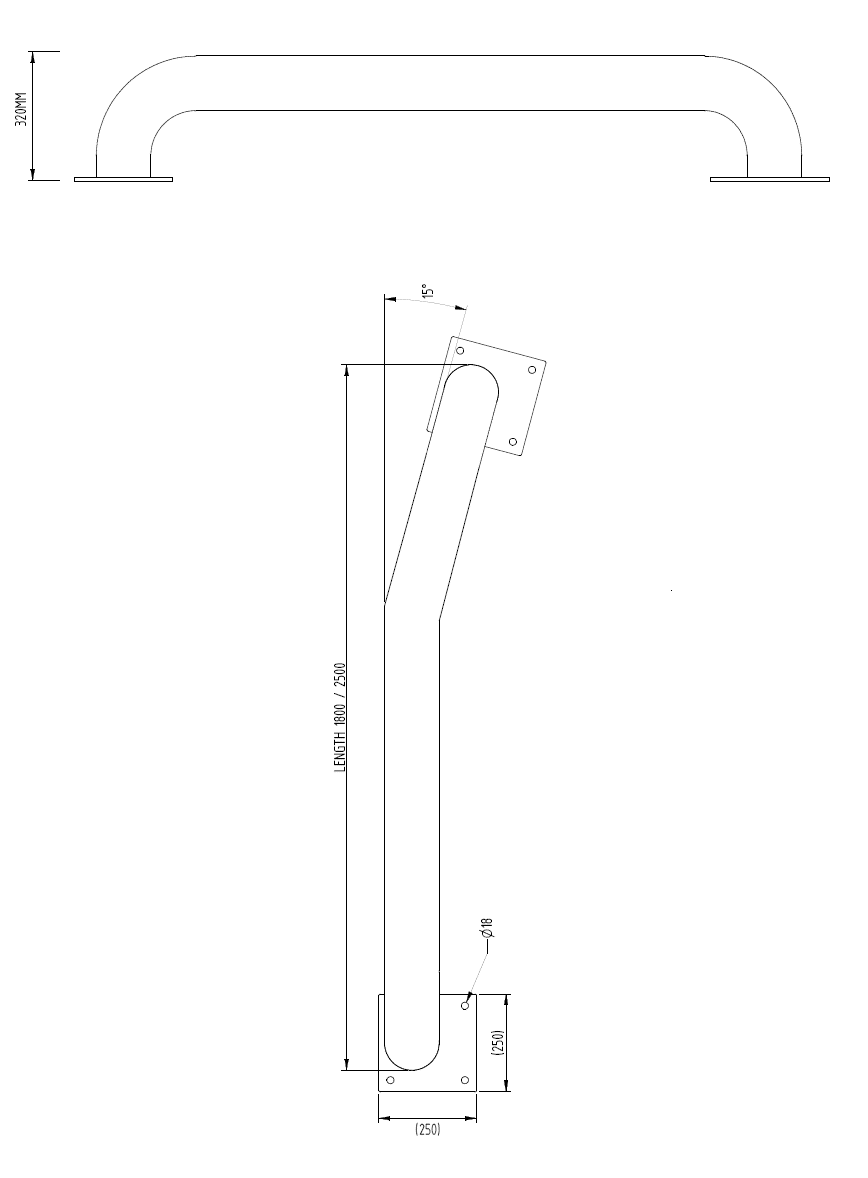

Product Details:
  • Available bolt down only
  • Square flange plate – 250mm sq x 10mm
  • 8 x 18mm bolts required per wheel guide
  • 320mm height
  • 5mm wall thickness
  • 15° crank
