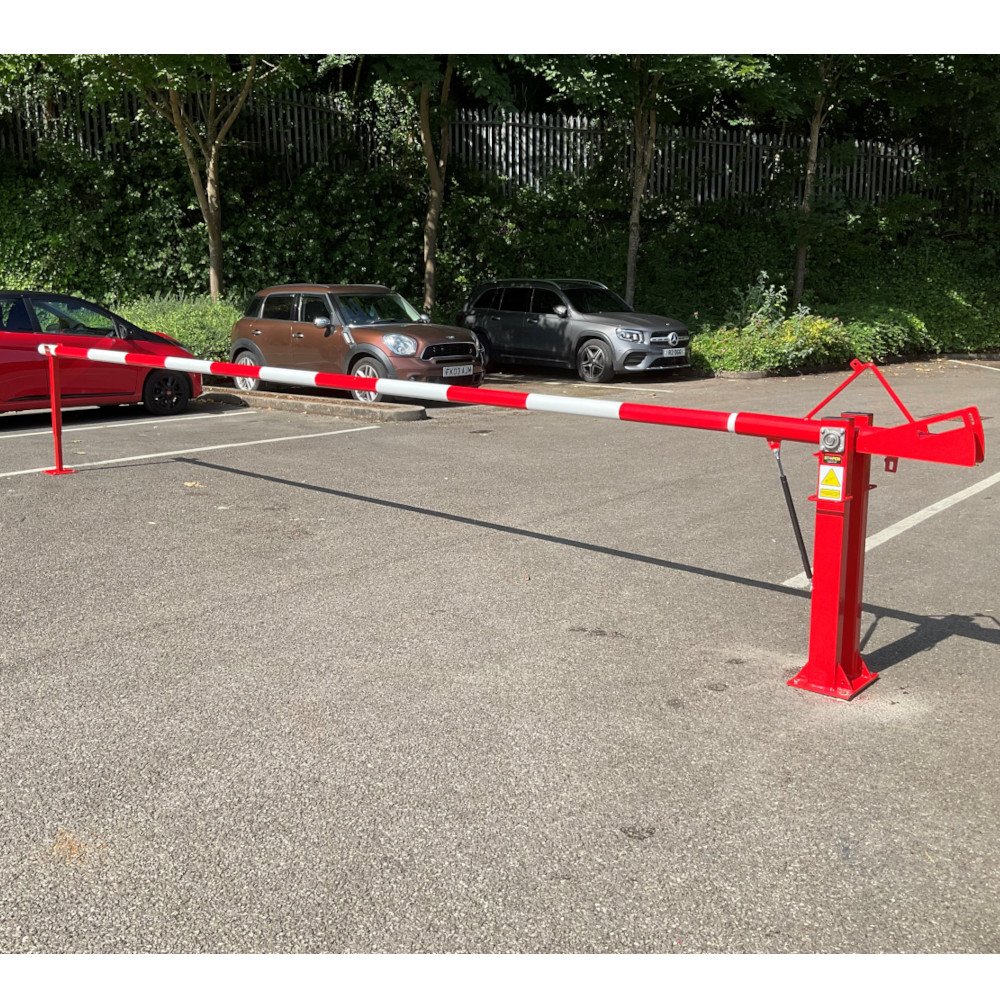

The Easy Lift Manual Arm Barrier provides a low maintenance, cost-effective way of manually controlling access to unauthorised areas on a permanent or temporary basis. Durable and hard-working, this manual raise arm barrier has been manufactured for the last 32 years and compromises a robust and high quality pivot post, lockable end rest and aluminium boom.
Carefully designed pivot post has the strength to cover up to 8 metre road widths and still be easily operated by one person alone ! Also combined with a stainless steel pivot bar and two heavy duty, anti rust bearings this barrier is a great way of ensuring complete traffic management.
Manual Raise Arm Barriers are a low maintenance, cost effective way of manually controlling access to unauthorised or controlled areas. We offer them in spans of up to 9 Metres (Heavy Duty Model).
The pivot assembly is made of aluminium box section, the zinc plated shaft pivots on two heavy-duty stainless steel bearing blocks.
The design of the Manual Arm Barriers incorporates a locking mechanism, allowing you to fix the barrier in the raised or lowered position prior to applying the padlock. A counter balanced fish tail weight is fine tuned for ease of operation.
The Gas Strut Easy Lift Manual Raise Arm Barrier comes complete with a lockable end rest, padlock and keys.
Aluminium arm, finished in either alternate red and white or alternate yellow and black vinyl hatching as standard (other colours available.)
Standard Colours: Red/White or Yellow/Black.
Specification
