Manual Raise Arm Barriers – Heavy Duty 6.0m to 9.0m

£1,350.00

(From £1,620.00 incl VAT)

Manual Raise Arm Barriers are a low maintenance, cost effective way of manually controlling access to unauthorised or controlled areas. We offer them in spans of up to 9 Metres (Heavy DutyModel).

Free Delivery to Mainland UK Address (Excluding Highlands)

Read more

Optional Extras

Bottom Arm Skirt (per meter up to 7m only) (+£89.00)

Select a product variation to get estimate
Manual arm barrier

£1,350.00

Optional Extras

Bottom Arm Skirt (per meter up to 7m only) (+£89.00)

Select a product variation to get estimate
SKU: SFD16-HDMANUALRISE Categories: , , , , Tag:
Brand:
Description
Specifications

Manual Raise Arm Barriers – Heavy Duty 6.0m to 9.0m

The Heavy Duty Manual Raise Arm Barriers provides a low maintenance, cost-effective way of manually controlling access to unauthorised areas on a permanent or temporary basis. Durable and hard-working, this manual raise arm barrier has been manufactured for the last 32 years and compromises a robust and high quality pivot post, lockable end rest and aluminium boom.

Carefully designed pivot post has the strength to cover up to 9 metre road widths and still be easily operated by one person alone ! Also combined with a stainless steel pivot bar and two heavy duty, anti rust bearings this barrier is a great way of ensuring complete traffic management.

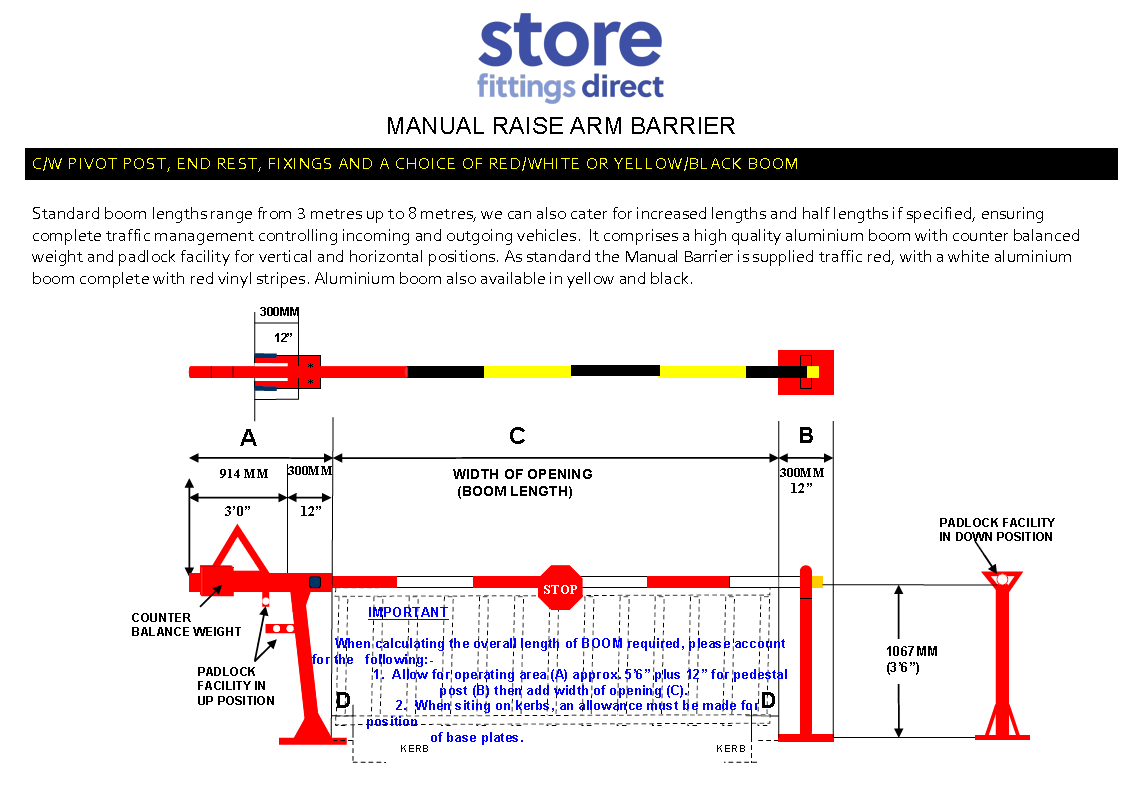

Standard Manual Raise Arm Barriers

Manual Raise Arm Barriers are a low maintenance, cost effective way of manually controlling access to unauthorised or controlled areas. We offer them in spans of up to 9 Metres (Heavy Duty Model).
The pivot assembly is made of aluminium box section, the zinc plated shaft pivots on two heavy-duty stainless steel bearing blocks.

The design of the Manual Arm Barriers incorporates a locking mechanism, allowing you to fix the barrier in the raised or lowered position prior to applying the padlock. A counter balanced fish tail weight is fine tuned for ease of operation.

The Standard Manual Raise Arm Barrier comes complete with a lockable end rest, padlock and keys.
Aluminium arm, finished in either alternate red and white or alternate yellow and black vinyl hatching as standard (other colours available.)
Standard Colours: Red/White or Yellow/Black.

Please note: Barrier must be locked when left in the upright position

Specification

CE Approved
Maximum Span Dimensions
9.0m plain pole only
Finish
Zinc Plated & Polyester Powder Coated
Material Construction
Steel & Aluminium
Counter Weights
Steel PPC Counterweights

Handing Options

Left or Right Handed (Optional)

Optional extras

  • Pogo tip support
  • Stop/No Entry signs
  • Bottom Skirting
  • Max arm length 9.0m (plain pole)
