ISP Stainless Steel Protection Rail

This low level stainless steel bump rail protection system is one of our most stylish and versatile products.

Suitable for both internal and external use, the low-level modular stainless steel provides durable and robust protection for window lines and brickwork whilst maintaining a modern stylish image. The modular components of the range allows for easy planning and installation.

As well as being available as floor fixed low level protection, it is also possible to fit this stainless steel rail to columns or walls, at any height.

Bumper Rail Features:

• Fully modular construction
• Design construction – Easy to install
• 50mm x 14swg 304 grade stainless steel

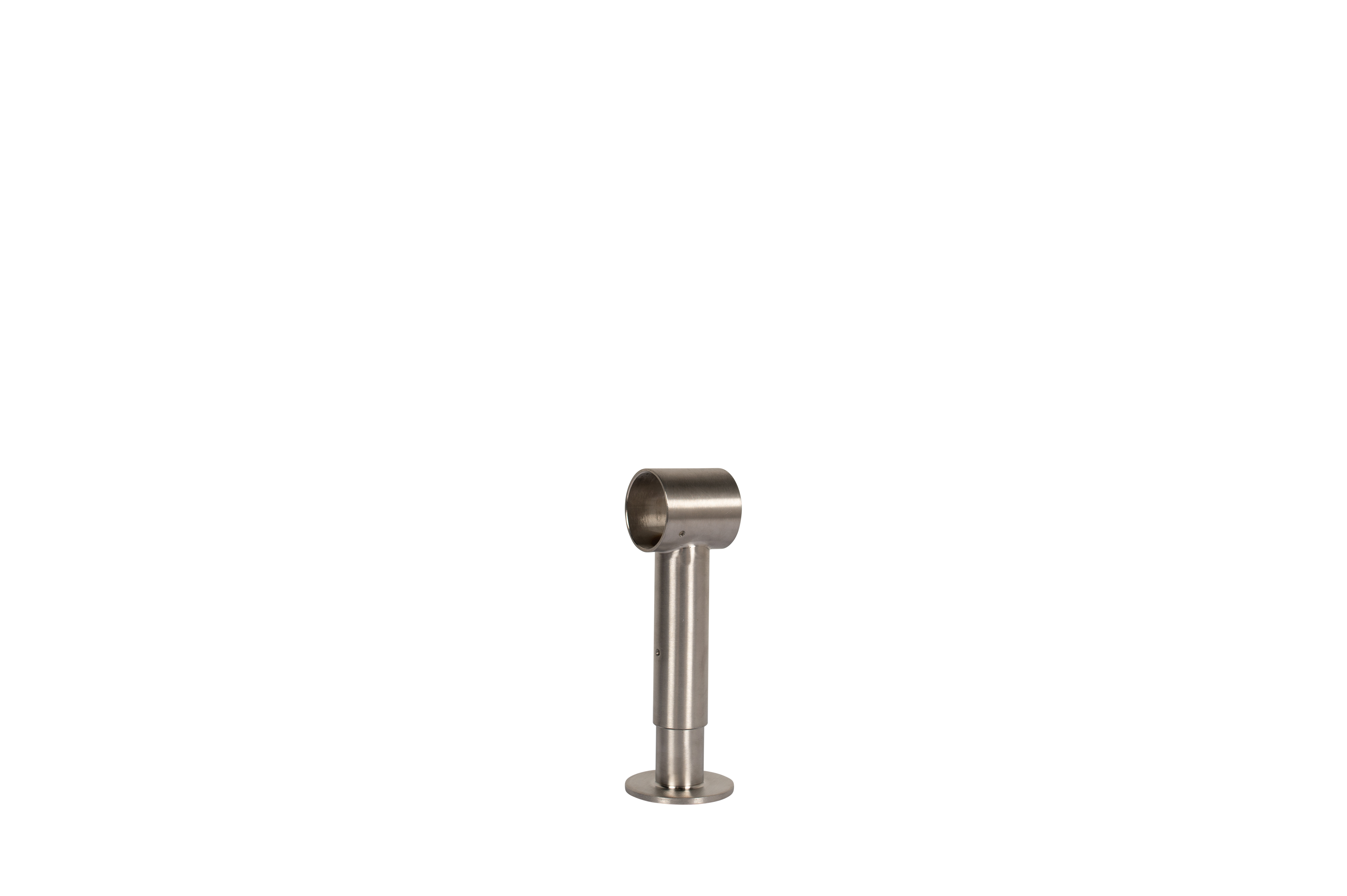

• Surface fixed or potted support foot
• Finished height 165-205mm above finished floor level

Bumper Rail Product Placement:

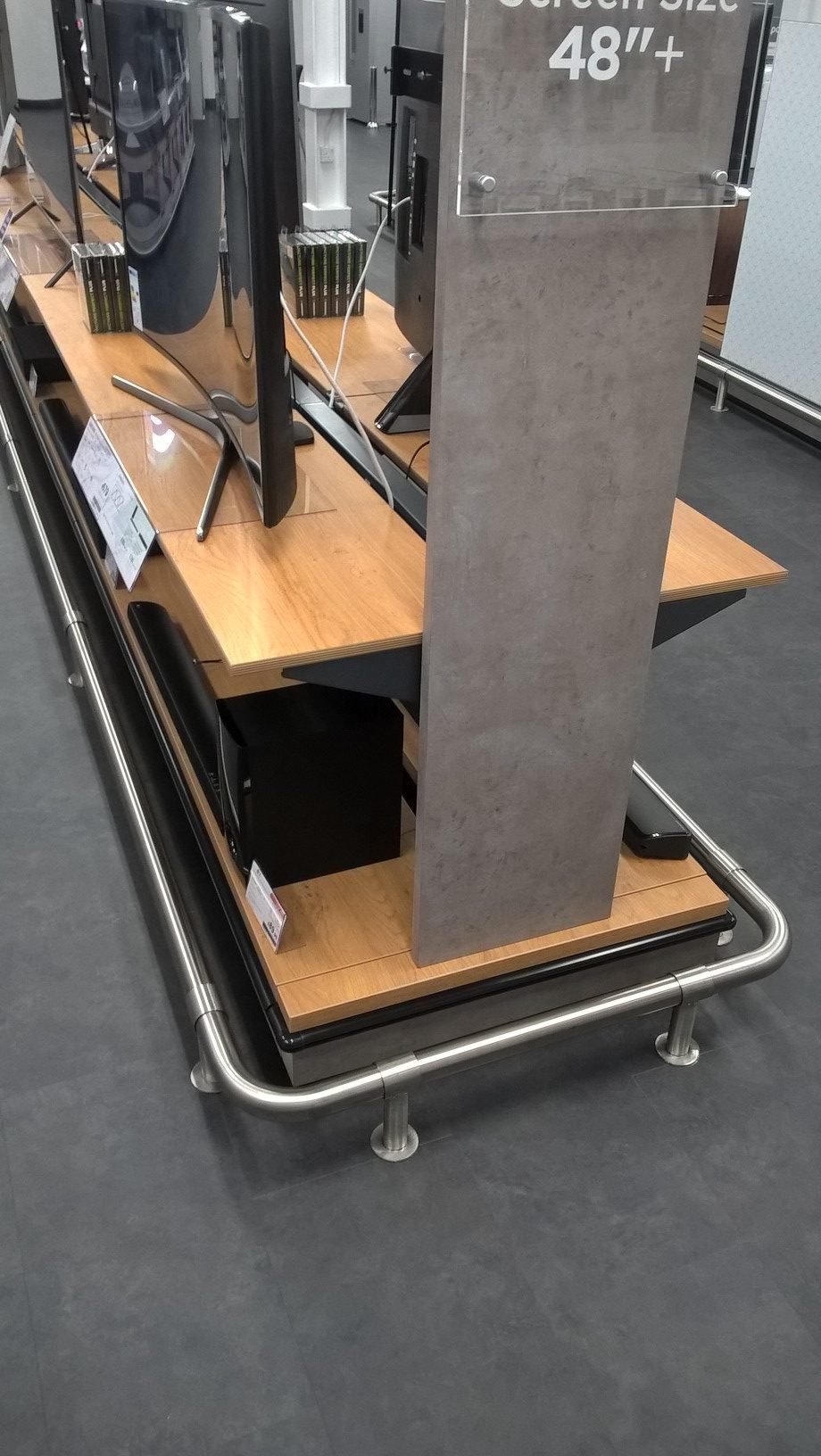

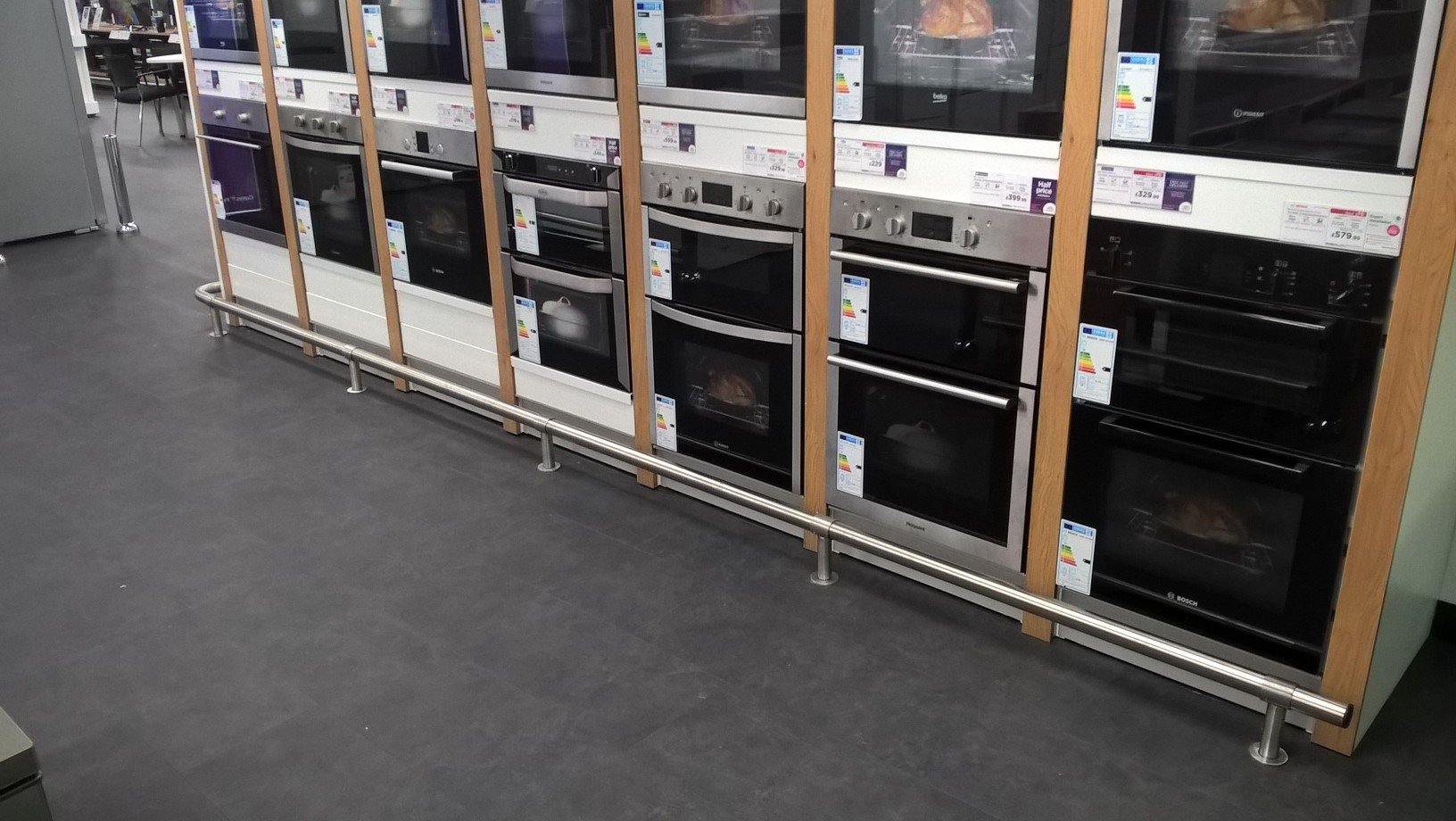

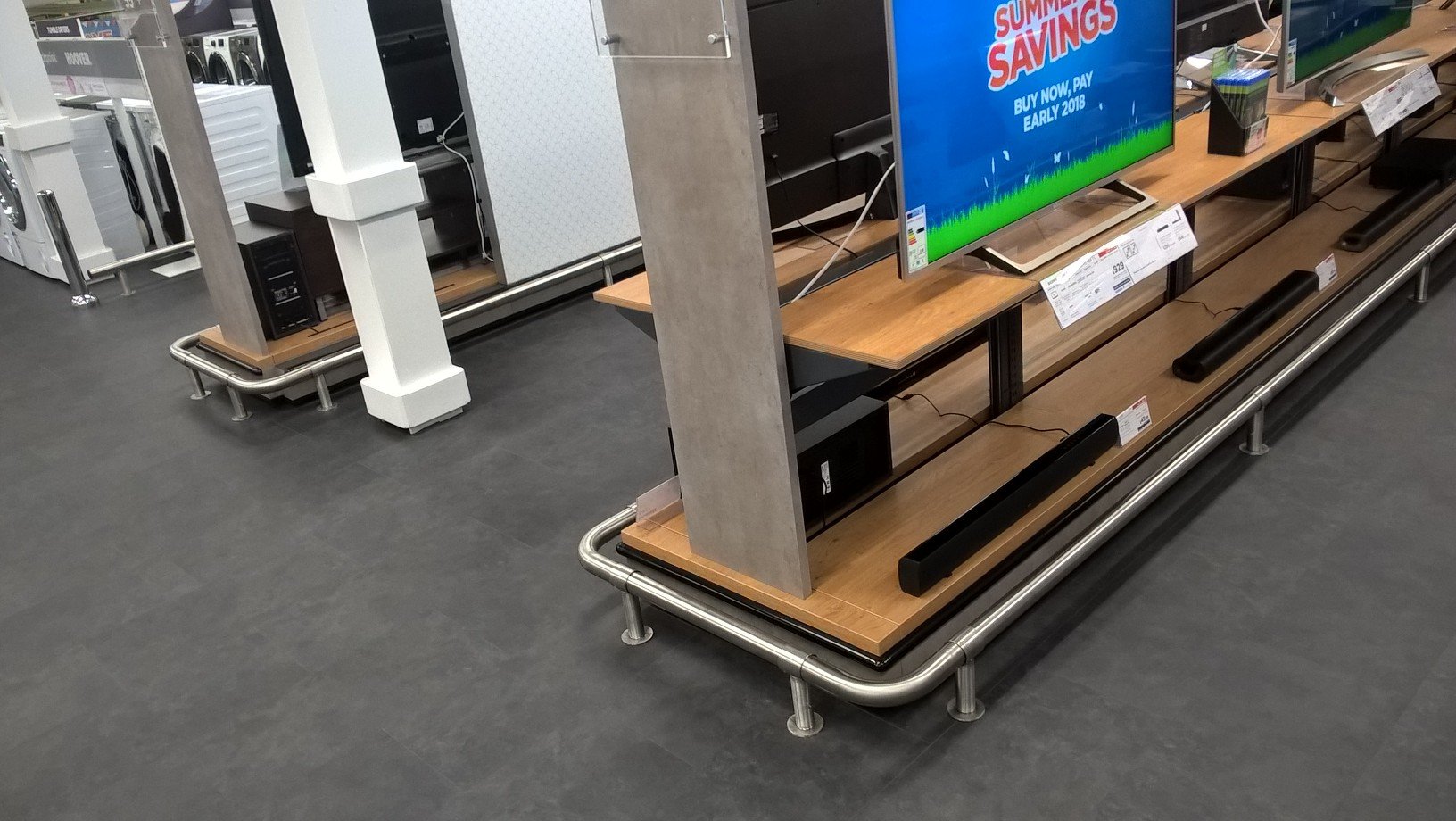

For installation both internally & externally of entrance lobbies, externally along glazing line and along perimeter walls at customer entrances. To protect against damage from Shopping trolleys.

Bump Rail Performance Criteria:

Must withstand impact from customer trolley’s and deflect impact from structure.

Product Specification:

• Grade 304 Stainless Steel
• Stainless steel Satin Polish 240 grit finish
• Tube diameter 50mm
• Stainless Steel End Caps to terminate runs.

Installation:

• Maximum position of 100mm from wall/glazing to back of extrusion
• Floor mounted with M10x80mm Expandable rawlshields and bolts
• Leg centres are typically 1.5metres
• Height of top rail is typically 165mm high
• Mark the floor with a chalk line and place the 1st base flange at the start of the run so it runs parallel with the rail
• Use the rail to mark the next position of the base flange & continue this process for remainder of run
• Floor mounted slide through legs must only be used where a concrete base or slab is available – DO NOT install into block work or tarmac

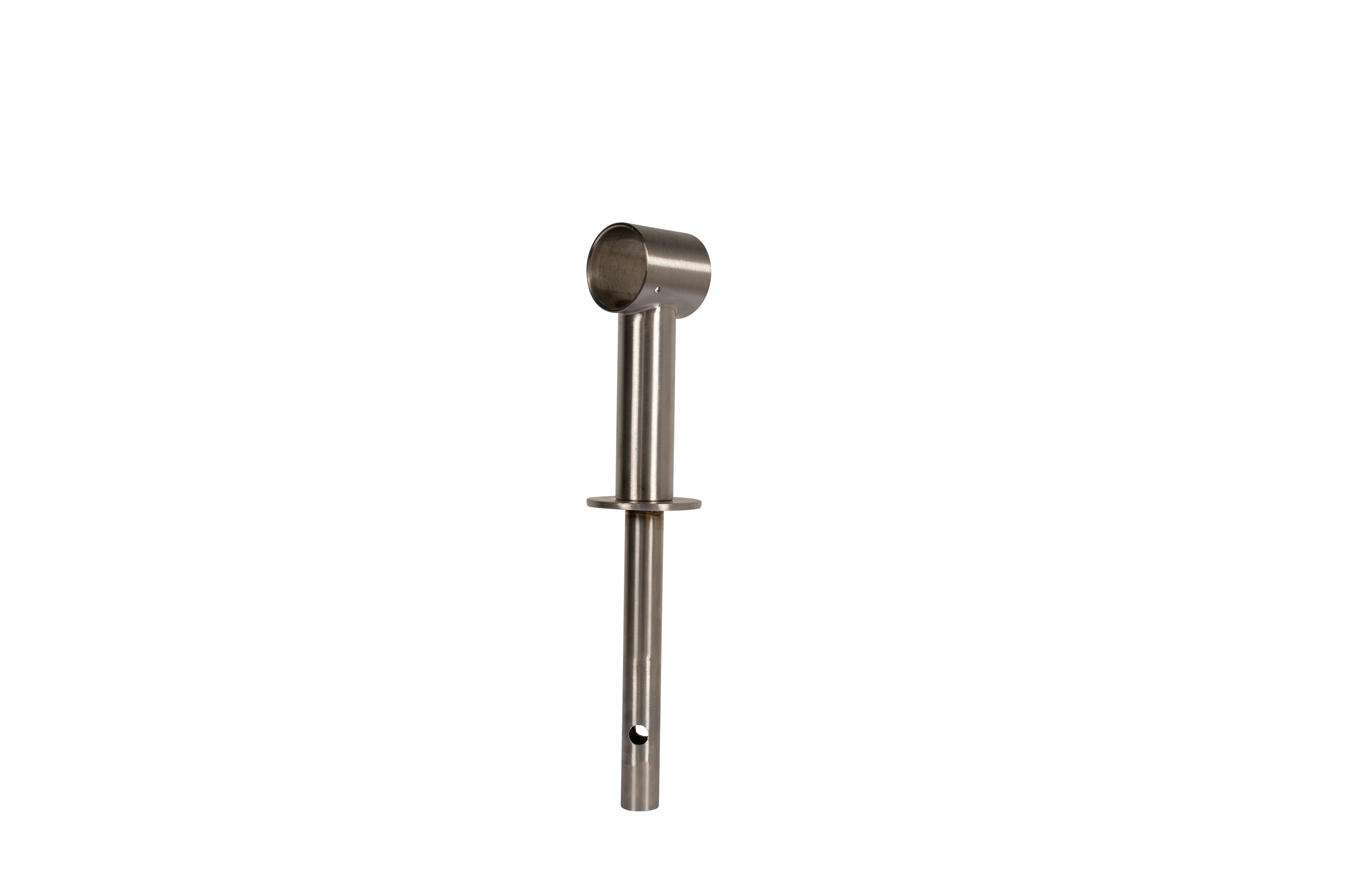

For potted legs, a hole must be core drilled 150mm wide x 300mm deep. Hole to be backfilled with concrete & potted leg pushed into the concrete before it sets.

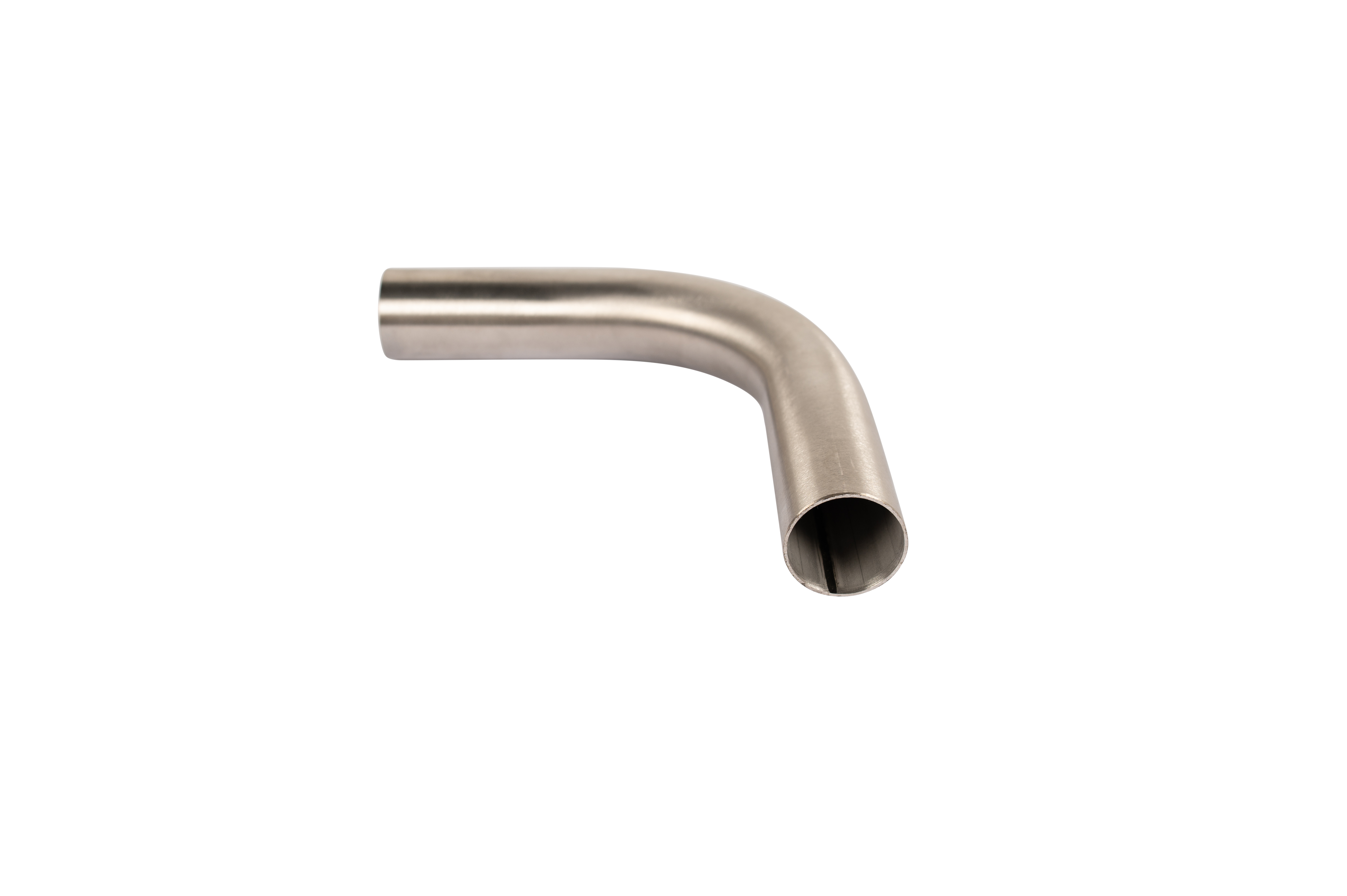

Joining Spigots required to Join ISP lengths together plus Corner Sections.
